Clamp ferrule with hose tail
Clamp × barbed hose tail
ID 25–101 mm

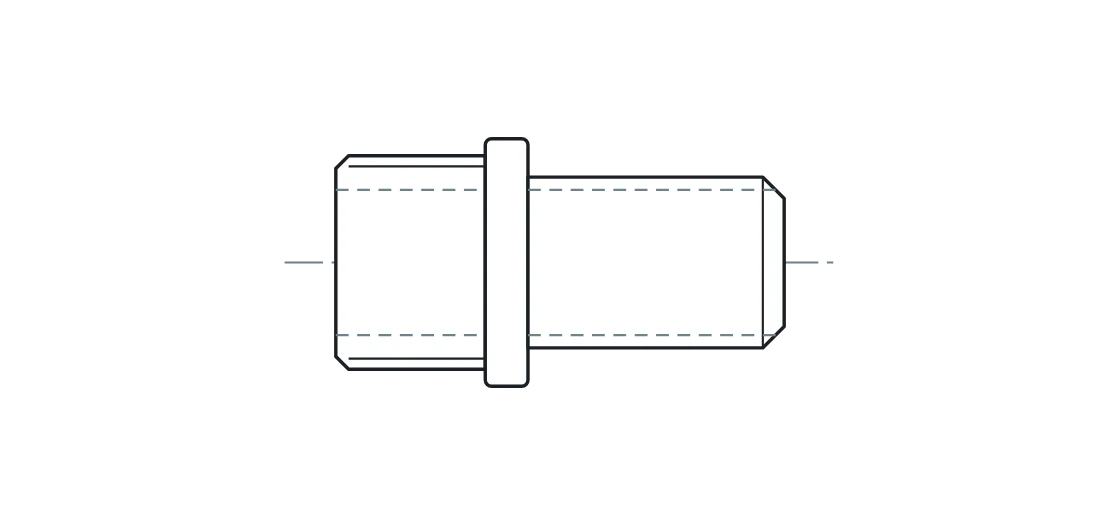

Macon male thread weld end Macon: male thread × weld end
Macon is a threaded food coupling widely used in the wine and food industry. Parts are made of 316L stainless steel. DN 43–83.
- Inner diameter
- 43–83 mm
- System
- Macon
- Material
- Stainless steel 316L
- Connection
- Weld end
Seals for this coupling are in Seals and gaskets.
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 43, 53, 63, 73, 83
- Coupling system
- Macon
- Body material
- Stainless steel 316L
- Connection
- Weld end
Sizes and article numbers
Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.
| DN, mm | Article |
|---|---|
| 43 | 348043043 |
| 53 | 348053053 |
| 63 | 348063063 |
| 73 | 348073073 |
| 83 | 343083083 |
Application and limits
- Application
- Macon is a threaded food coupling widely used in the wine and food industry. Parts are made of 316L stainless steel.
- Features
- 316L stainless steel, for the wine and food industry
- Limits
- Working pressure and temperature depend on the size, body material and seal — please check when ordering.
