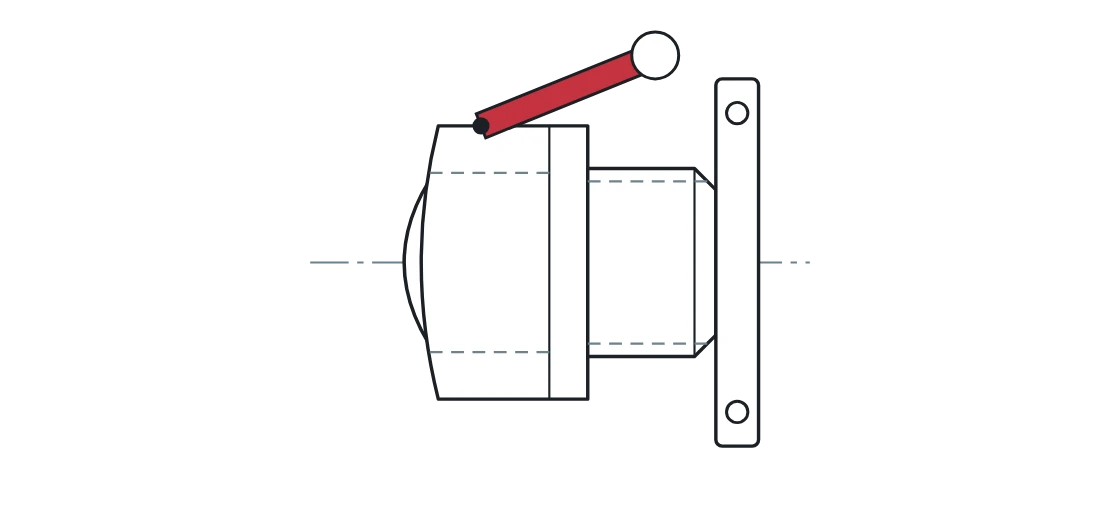

Perrot coupling with flange Perrot-type ball joint coupling

Perrot-type ball joint couplings for pipes and hoses: the ball joint allows the line to deflect at an angle. Sizes by pipe outer diameter. Galvanized steel; OPTIMA — stainless steel; SUPRA — stainless and galvanized steel. Pipe 50–159 mm.

System: Perrot
Material: Galvanized steel
Connection: Flange

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Coupling system: Perrot
Body material: Galvanized steel
Connection: Flange

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

Article	Pipe OD, mm	Part	Material
KVF 50 x 50	50	male	Galvanized steel
KVF 70 x 65	70	male	Galvanized steel
KVF 89 x 80	89	male	Galvanized steel
KVF 108 x 100	108	male	Galvanized steel
KVF 133 x 125	133	male	Galvanized steel
KVF 159 x 150	159	male	Galvanized steel
KMF 50 x 50	50	female	Galvanized steel
KMF 70 x 65	70	female	Galvanized steel
KMF 89 x 80	89	female	Galvanized steel
KMF 108 x 100	108	female	Galvanized steel
KMF 133 x 125	133	female	Galvanized steel
KMF 159 x 150	159	female	Galvanized steel

Application and limits

Application: Perrot-type ball joint couplings for pipes and hoses: the ball joint allows the line to deflect at an angle. Sizes by pipe outer diameter. Galvanized steel; OPTIMA — stainless steel; SUPRA — stainless and galvanized steel.
Features: Ball joint allows angular deflection
Limits: Working pressure and temperature depend on the size, material and seal — please check when ordering.
