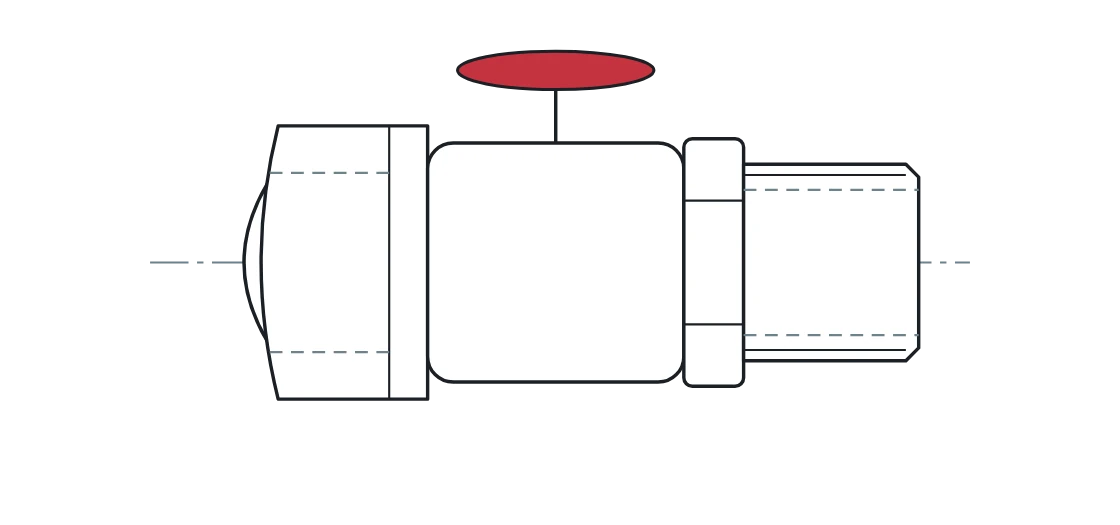

Drawing: Perrot coupling with built-in valve

Perrot coupling with built-in valve Perrot-type ball joint coupling

Perrot-type ball joint couplings for pipes and hoses: the ball joint allows the line to deflect at an angle. Sizes by pipe outer diameter. Galvanized steel; OPTIMA — stainless steel; SUPRA — stainless and galvanized steel. Pipe 50–159 mm.

System: Perrot
Material: Galvanized steel
Connection: Thread

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Coupling system: Perrot
Body material: Galvanized steel
Connection: Thread

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

Article	Pipe OD, mm	Material
KZA 50 x 1½”	50	Galvanized steel
KZA 70 x 2½”	70	Galvanized steel
KZA 89 x 3”	89	Galvanized steel
KZA 108 x 4”	108	Galvanized steel
KZA 133 x 5”	133	Galvanized steel
KZA 159 x 6”	159	Galvanized steel

Application and limits

Application: Perrot-type ball joint couplings for pipes and hoses: the ball joint allows the line to deflect at an angle. Sizes by pipe outer diameter. Galvanized steel; OPTIMA — stainless steel; SUPRA — stainless and galvanized steel.
Features: Ball joint allows angular deflection
Limits: Working pressure and temperature depend on the size, material and seal — please check when ordering.
